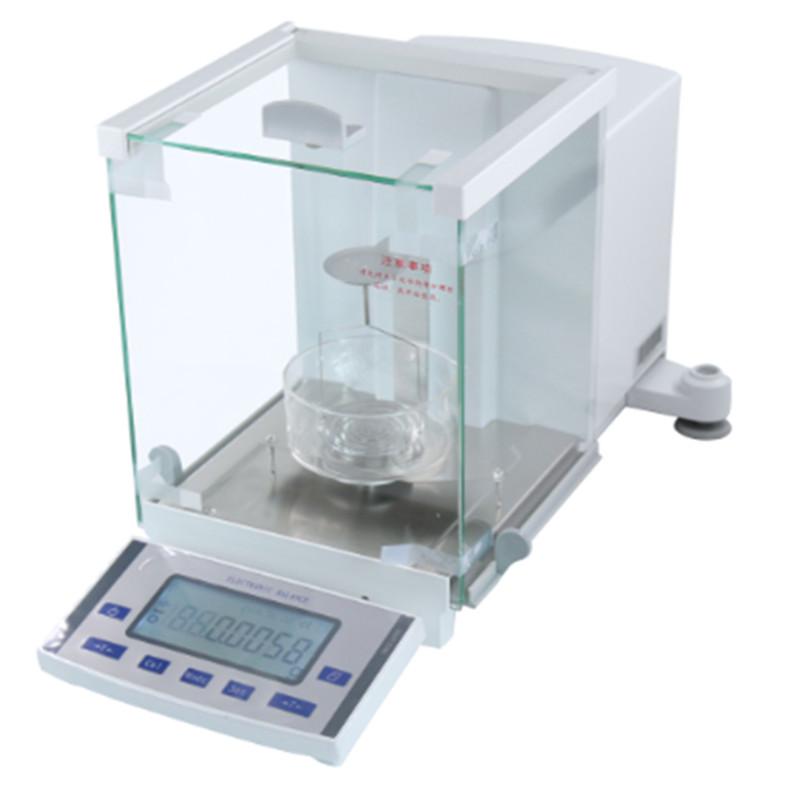

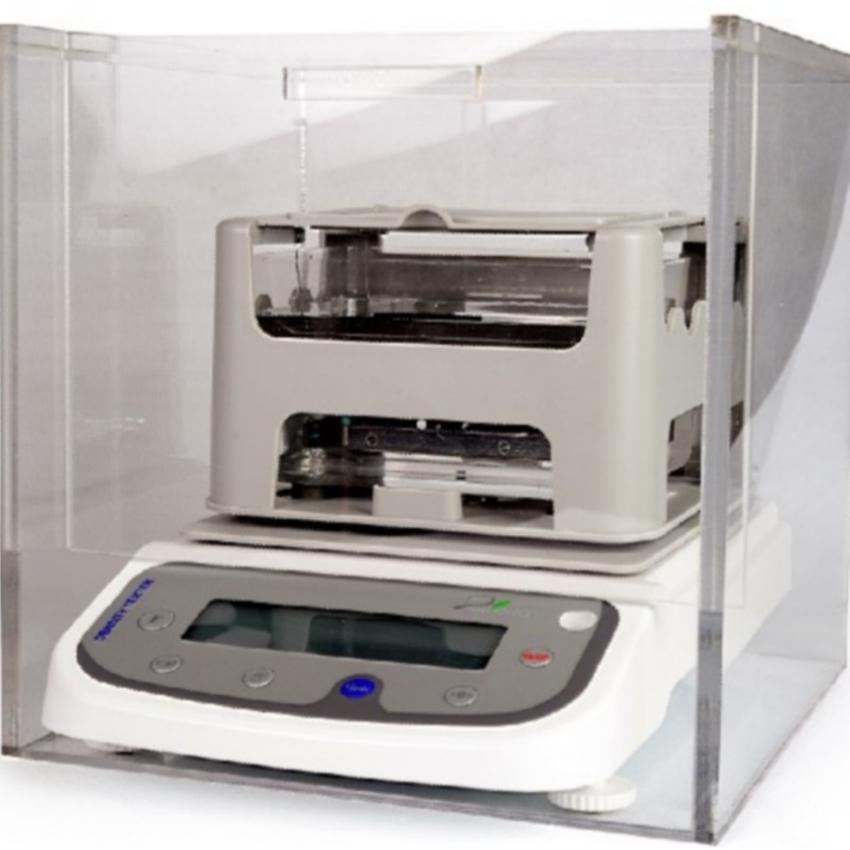

Fully Automatic Electronic Density Meter
Applicable Industries: Rubber, wires and cables, plastic pipes, fibers, wood-plastic, aluminum materials, and other new material research laboratories.
Operating Principle: Archimedes' principle of buoyancy.
Product Description:
The "WANJI" brand uses internationally recognized high-sensitivity, high-stability gold-plated ceramic sensor technology. It leads the industry in cost-performance by using water as the medium (alcohol is also an option). The density value is displayed in just two steps. No manual calculations are needed, making it more convenient, faster, and time-saving.
Product Features:
- User-friendly operation, fully automatic density measurement.
- Innovative and stylish appearance, outstanding texture, rigorous craftsmanship, and exquisite design.
- Uses internationally recognized high-sensitivity, high-stability gold-plated ceramic sensor technology, leading the industry in cost-performance.
- Density accessories are designed based on 10 years of experience. There are definitely peers around you using our brand.
- One-piece transparent measurement water tank, corrosion-resistant.
Technical Parameters:
Model: NM-300, NM-600, DR-120X, DR-100E
Maximum Weight: 300g, 600g, 120g, 120g
Weight Accuracy: 0.005g, 0.001g, 0.0001g
Density Resolution: 0.001g/cm3, 0.0001g/cm3, 0.0001g/cm3
Recommended Measurement: More than 5g, more than 2g, more than 0.5g
Brand: WANJI
Types of Measurements: Particles, sheets, floating bodies
Measurement Time: About 10 seconds
Setting Function: Temperature compensation setting, solution compensation setting
Windshield: Fully transparent acrylic windshield, 100% visible sample, fully transparent glass windshield, 100% visible sample
Communication Interface: Standard RS232 communication interface, can connect to printers, PCs, and other peripherals
Voltage: AC100-240V-50/60HZ, DC 7.5V 600mA
Water Tank Size: 165*115*85mm, 100*50*100mm (customizable)
Packing Size: 450*240*460mm, 620*460*560mm
Instrument Size: 270*270*270mm, 475*305*295mm
Weight: 7.5kg
Standard Accessories: ① Main unit ② Water tank ③ Measuring platform ④ Tweezers ⑤ Manual ⑥ Weights ⑦ Dust cover ⑧ Floating frame ⑨ Power supply
Optional Accessories: Printer X1 (standard model), Printer X2 (with time function)
Compliance Standards:
GB/T1033-1986, GB/T3810.3-2006, GB/T 1463-2005, ASTM D297-93, ISO2781, DIN53516, etc.
